The VPN:
The Meraki client VPN uses the L2TP tunneling protocol and can be deployed on PC’s, Mac’s, Android, and iOS devices without additional software as these operating systems natively support L2TP.

The Encryption Method:
Along with the L2TP/IP protocol the Meraki client VPN employs the following encryption and hashing algorithms: 3DES and SHA1 for Phase1, AES128/3DES and SHA1 for Phase 2. Best practice dictated that the shared secret should not contain special characters at the beginning or end.

  1. Force client to use VPN-provided DNS first (IpInterfaceMetric=1) # Setting the IpInterfaceMetric to 1 will force the PC to use that DNS first. # Some companies have local domains that overlap with valid domains.
  2. The AnyConnect client for Windows, MacOS, and Linux are available on the Client Connection section of the AnyConnect configuration page on the dashboard and can be downloaded by a Meraki dashboard administrator. Please note, the download links on the Meraki dashboard expire after five minutes.

Enabling Client VPN:
Select Enabled from the Client VPN server pull-down menu on the Security Appliance -> Configure -> Client VPN page. You can then configure the following options:

  • Client VPN Subnet: The subnet that will be used for Client VPN connections. This should be a private subnet that is not in use anywhere else in your network. The MX will be the default gatway on this subnet and will route traffic to and from this subnet.
  • DNS Nameservers: The servers VPN Clients will use to resolve DNS hostnames. You can choose from Google Public DNS, OpenDNS, or specifying custom DNS servers by IP address.
  • WINS: If you want your VPN clients to use WINS to resolve NetBIOS names, select Specify WINS Servers from the drop-down and enter the IP addresses of the desired WINS servers.
  • Secret: The shared secret that will be used to establish the Client VPN connection.
  • Authentication: How VPN Clients will be authenticated.
  • Systems Manager Sentry VPN Security: Configuration settings for whether devices enrolled in systems manager should receive a configuration to connect to the Client VPN.

I tried authenticating using Active Directory and Meraki Cloud with no luck. It works using the radius server but only for my user account. In the Radius log there are no errors, but when the client tries to verify the username and password for the other users it fails. Device-specific policies can be automatically applied by Cisco Meraki wireless APs to restrict, quarantine, or throttle user-owned devices. Cisco Meraki client fingerprinting technology immediately recognizes iOS, Android, Windows, and Mac devices, and even lets you apply more restrictive policies for unknown devices.

I know Meraki Client VPN needs some love from their team so perhaps it's already in the works. I'm a fellow customer/admin like you so we'll just have to wait and see! Good luck and feel free to ping me with questions. Upvote Upvoted Remove Upvote.

Authentication:
The VPN uses both pre-shared key based authentication and user authentication. To set up the user authentication mechanism, you will need to select your authentication method.

Meraki client setup

Meraki Cloud Authentication:
Use this option if you do not have an Active Directory or RADIUS server, or if you wish to manager your VPN users via the Meraki cloud. To add or remove users, the User Management section at the bottom of the page. Add a user by selecting “Add new user” and entering the following information:

  • Name: Enter the user’s name
  • Email: Enter the user’s email address
  • Password: Enter a password for the user or select “Generate” to automatically generate a password
  • Authorized: Select whether this user is authorized to use the Client VPN

In order to edit an existing user, click on the user under User Management section. To delete a user, click the X next to the user on the right side of the user list. When using Meraki hosted authentication, the user’s email address is the username that is used for authentication.

RADIUS:
Use this option to authenticate users on a RADIUS server. Click Add a RADIUSserver to configure the server(s) to use. You will need to enter the IP address of the RADIUS server, the port to be used for RADIUS communication, and the shared secret for the RADIUS server.

Active Directory:
Use this option if you want to authenticate your users with Active Directory domain credentials. You will need to provide the following information:

  • Short Domain: The short name of your Active Directory domain.
  • Server IP: The IP address of an Active Directory server on the MX LAN.
  • Domain Admin: The domain administrator account the MX should use to query the server.
  • Password: Password for the domain administrator account.

For example, considering the following scenario: You wish to authenticate users in the domain test.company.com using an Active Directory server with IP 172.16.1.10. Users normally log into the domain using the format ‘test/username’ and you have created a domain administrator account with the username ‘vpnadmin’ and the password ‘vpnpassword’.

  • The Short domain would be ‘test’.
  • The Server IP would be 172.16.1.10
  • The Domain admin would be ‘vpnadmin’
  • The Password would be ‘vpnpassword’.
Note:

At this time, the MX does not support mapping group policies via Active Directory for users connecting through the Client VPN.

Systems Manager Sentry VPN Security:
When using Meraki cloud authentication, Systems Manager Sentry VPN security can be configured. If your Dashboard organization contains one or more MDM networks. Systems Manager Sentry VPN security allows for your devices enrolled in Systems Manager to receive the configuration to connect to the Client VPN through the Systems Manager profile on the device.

To enable Systems Manager Sentry VPN security, choose Enabled from the Client VPN server pulldown menu on the Security Appliance -> Configure -> Client VPN page. You can configure the following options:

  • Install Scope: The install scope allows you to select a set of Systems Manager tags for a particular MDM network. Devices with these tags applied in a Systems Manager network will receive a configuration to connect to this network’s Client VPN server through their Systems Manager profile.
  • Send All Traffic: Select whether all client traffic should be sent to the MX.
  • Proxy: Whether a proxy should be used for this VPN connection. This can be set to automatic, manual, or disabled.
Note:

When using Systems Manager Sentry VPN security, the username and password used to connect to the client VPN are generated by the Meraki cloud. Usernames are generated based on a hash of unique identifier on the device and the username of that device. Passwords are randomly generated.

Was this article helpful?

Related Articles

This page provides instructions for configuring client VPN services through the Dashboard.

For detailed instructions on how to configure a client VPN connection on various client device platforms, please refer to:

Client VPN

The client VPN service uses the L2TP tunneling protocol and can be deployed without any additional software on PCs, Macs, iOS devices, and Android devices, since all of these operating systems natively support L2TP VPN connections.

Note: TLS (SSL) Client VPN is supported on the MX with AnyConnect. To learn more, see AnyConnect on the MX

Note: Linux-based operating systems can support client VPN connections as well, although third-party packages may be necessary to support L2TP/IP.

Note: Establishing a client VPN connection when the client is located on the LAN of the MX is unsupported.

Encryption Method

Client VPN uses the L2TP/IP protocol, with the following encryption and hashing algorithms: 3DES and SHA1 for Phase1, AES128/3DES and SHA1 for Phase2. As a best practice, the shared secret should not contain any special characters at the beginning or end.

Owing to changes in the PCI-DSS Standard version 3.2.1, some auditors are now enforcing requirements for stronger encryption than the Meraki Client VPN default settings provide. Please contact Meraki Support if you need these values adjusted, but please be aware that some client devices may not support these more stringent requirements (AES128 encryption with DH group 14 - Required by PCI-DSS 3.2.1).

Client VPN Server Settings

To enable Client VPN, choose Enabled from the Client VPN server pulldown menu on the Security Appliance > Configure > Client VPN page. The following Client VPN options can be configured:

  • Client VPN Subnet: The subnet that will be used for Client VPN connections. This should be a private subnet that is not in use anywhere else in the network. The MX will be the default gateway on this subnet and will route traffic to and from this subnet.
  • Hostname: This is the hostname of the MX that Client VPN users will use to connect. This hostname is a DDNS host record correlating to the Public IP address of the MX. You can change this hostname by following the instructions here.
  • DNS server: The servers VPN Clients will use to resolve DNS hostnames. Chose from Google Public DNS, OpenDNS, or specifying custom DNS servers by IP address.
  • WINS server: If VPN clients should use WINS to resolve NetBIOS names, select Specify WINS Servers from the drop-down and enter the IP addresses of the desired WINS servers.
  • Shared secret: The shared secret that will be used to establish the Client VPN connection.
  • Authentication: How VPN Clients will be authenticated (see below).
  • Systems Manager Sentry VPN security: Configuration settings for whether devices enrolled in systems manager should receive a configuration to connect to the Client VPN (see below Systems Manager Sentry VPN Security section).

Authentication

Meraki Client VPN uses the Password Authentication Protocol (PAP) to transmit and authenticate credentials. PAP authentication is always transmitted inside an IPsec tunnel between the client device and the MX security appliance using strong encryption. User credentials are never transmitted in clear text over the WAN or the LAN. An attacker sniffing on the network will never see user credentials because PAP is the inner authentication mechanism used inside the encrypted IPsec tunnel.

The authentication itself can be performed by using these three options: the Meraki cloud, RADIUS, or Active Directory. Below, the three options are discussed.

Meraki Cloud Authentication

Use this option if an Active Directory or RADIUS server is not available, or if VPN users should be managed via the Meraki cloud. To add or remove users, use the User Management section at the bottom of the page. Add a user by clicking 'Add new user' and entering the following information:

  • Name: Enter the user's name.
  • Email: Enter the user's email address.
  • Password: Enter a password for the user or click 'Generate' to automatically generate a password.
  • Authorized: Select whether this user is authorized to use the Client VPN.

To edit an existing user, click on the user under the User Management section. To delete a user, click the X next to the user on the right side of the user list.

When using Meraki hosted authentication, the user's email address is the username that is used for authentication.

RADIUS

Meraki Client Association Expired

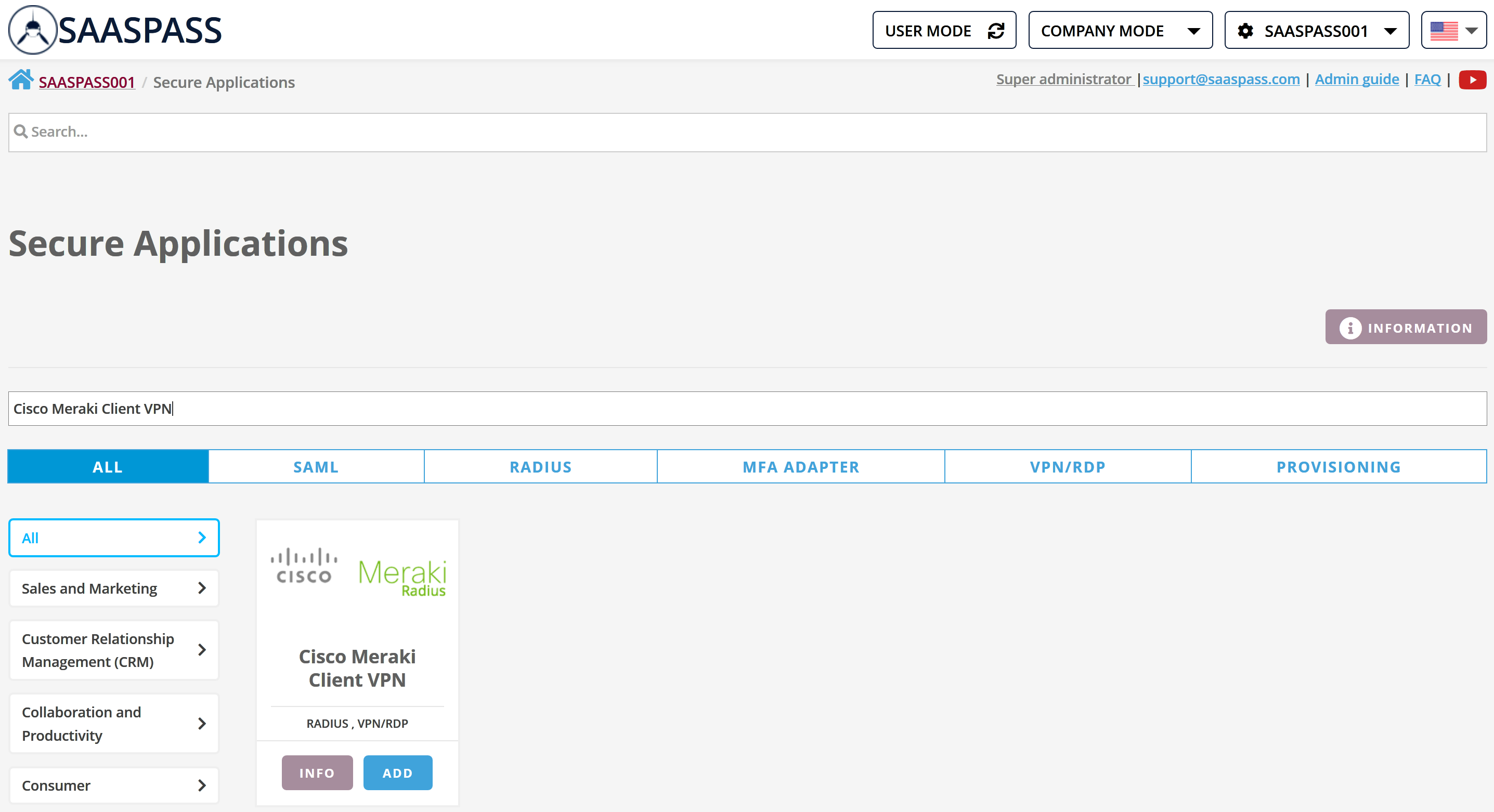

Use this option to authenticate users on a RADIUS server. Click Add a RADIUS server to configure the server(s) to use. Enter in the IP address of the RADIUS server, the port to be used for RADIUS communication, and the shared secret for the RADIUS server.

For more information on how to configure Radius authentication for Client VPN, refer to the documentation on Configuring RADIUS Authentication with Client VPN.

Note: If multiple RADIUS servers are configured, RADIUS traffic will not be load balanced.

Active Directory

Use this option if user authentication should be done with Active Directory domain credentials. You will need to provide the following information:

  • Short domain: The short name of the Active Directory domain.
  • Server IP: The IP address of an Active Directory server on the MX LAN or a remote subnet routable through AutoVPN.
  • Domain admin: The domain administrator account the MX should use to query the server.
  • Password: Password for the domain administrator account.

For example, considering the following scenario: Users in the domain test.company.com should be authenticated using an Active Directory server with IP 172.16.1.10. Users normally log into the domain using the format 'test/username' and you have created a domain administrator account with the username 'vpnadmin' and the password 'vpnpassword'.

Meraki Client Was Deauthenticated

  • The Short domain would be 'test'.
  • The Server IP would be 172.16.1.10.
  • The Domain admin would be 'vpnadmin'.
  • The Password would be 'vpnpassword'.

Meraki Client Vpn Windows 10

Refer to the Active Directory documentation for more information about integrating AD with Client VPN.

Note: At this time, the MX does not support mapping group policies via Active Directory for users connecting through the Client VPN.

Systems Manager Sentry VPN Security

When using Meraki cloud authentication, Systems Manager Sentry VPN security can be configured If your Dashboard organization contains one or more MDM networks. Systems Manager Sentry VPN security allows for devices enrolled in Systems Manager to receive the configuration to connect to the Client VPN through the Systems Manager profile on the device.

To enable Systems Manager Sentry VPN security, choose Enabled from the Client VPN server pulldown menu on the Security Appliance > Configure > Client VPN page. You can configure the following options:

  • Install Scope: The install scope allows for a selection of Systems Manager tags for a particular MDM network. Devices with these tags applied in a Systems Manager network will receive a configuration to connect to this network's Client VPN server through their Systems Manager profile.
  • Send All Traffic: Select whether all client traffic should be sent to the MX.
  • Proxy: Whether a proxy should be used for this VPN connection. This can be set to automatic, manual, or disabled

When using Systems Manager Sentry VPN security, the username and password used to connect to the client VPN are generated by the Meraki cloud.

Meraki Client Vpn

Clients

Usernames are generated based on a hash of a unique identifier on the device and the username of that device. Passwords are randomly generated.

Client VPN Connections

After configuring Client VPN and users are starting to connect, it may be useful to see how many and what client devices are connected to your network via Client VPN. To see connected Client VPN devices, navigate to Network-wide > Clients > click the dropdown icon on the Search clients... search bar > make sure to select Client VPN and either Online, Offline or both.

Group Policies

It is possible to manually apply group policies to clients connected via Client VPN. Group Policy applied to a client VPN user is associated with the username and not the device. Different devices that connect to Client VPN with the same username will receive the same group policy. For more help on assigning or removing group policies applied to a client, refer to the Creating and Applying Group Policies document.

Meraki Client

Note: It is not possible to assign group policies automatically once a user connects to Client VPN.

Meraki clients blocked from using lan

FAQs Page

If further guidance is required, please feel free to visit the FAQs page built into Client VPN page (Security Appliance > Configure > Client VPN > FAQs). The FAQs contain answers and links (KB Articles and Dashboard pages) to the most common Client VPN inquiries. Below is a snippet of the FAQs page.
